Current transformers (CTs) are essential components in electrical metering, power monitoring, and protection systems. Their accuracy directly influences the precision of power measurement, energy billing, and system protection. Two critical parameters define CT performance: ratio difference (current magnitude error) and phase error. Understanding their impact is vital for selecting the right CT for various applications.

The Importance of Ratio Difference and Phase Error

Ratio Difference: The Core of Accuracy in Current Measurement

The ratio difference (also known as current magnitude error) represents the discrepancy between the actual primary current and the scaled secondary current when referred back to the primary side. It is a fundamental error type in CTs, directly affecting the accuracy of current measurement.

• Impact on Measurement: A higher ratio difference leads to incorrect current readings, affecting energy billing and system monitoring.
• Regulatory Compliance: Standards like IEC 61869-2 and IEEE C57.13 define allowable ratio differences to ensure CTs meet industry requirements.
• Primary Consideration: In most electrical metering applications, ratio difference is more critical than phase error, as it directly affects metering precision.

Phase Error: Why It Matters in Power and Energy Measurement

Phase error refers to the angular difference between the primary and secondary currents. Unlike ratio difference, it does not affect the magnitude of the current but significantly impacts power calculation and energy metering.

• Power Measurement: In AC circuits, power is given by the equation:
  $P=V\times I\times \cos \varphi$, where $\varphi$ is the phase angle between voltage and current. A CT with phase error distorts this relationship, leading to incorrect power calculations.
• Energy Billing: Since energy (kWh) is the integral of power over time, inaccurate power calculations due to phase error result in energy billing discrepancies.
• Protective Relaying: Many protection schemes depend on phase alignment between currents from multiple CTs. A significant phase error can cause false tripping or failure to detect faults.

Which Error is More Important?

• For pure current measurement, ratio difference is the primary concern.
• For power and energy metering, phase error is equally critical because it affects real and reactive power calculations.

How Phase Error Affects Power Systems

Impact on Power Measurement

In AC circuits, active power (P) and reactive power (Q) depend on the phase relationship between voltage and current:

• Active Power: $P=V\times I\times \cos \varphi$
• Reactive Power: $Q=V\times I\times \sin \varphi$

If a CT introduces phase error, the calculated $\cos \varphi$ value becomes incorrect, leading to significant errors in both active and reactive power measurement.

Electricity Metering and Billing Errors

Electricity meters rely on precise current and voltage phase relationships to determine energy consumption. A phase error in CTs may result in:

• Overbilling or underbilling customers, leading to disputes with energy providers.
• Incorrect power factor calculations, affecting penalties and incentives in industrial billing.
• Inaccurate load profiling, leading to poor demand-side management decisions.

Protection Relay Malfunctions

Many protection schemes, such as differential protection and directional relays, depend on precise phase relationships. If a CT has excessive phase error:

• Differential relays may falsely interpret normal conditions as faults, causing unnecessary outages.
• Directional relays might misjudge power flow, leading to incorrect breaker operations.
• Overcurrent relays may experience delayed tripping, increasing the risk of equipment damage.

Why Does Current Have a Phase?

The Concept of Phase in AC Circuits

In an alternating current (AC) system, both voltage and current follow sinusoidal waveforms. However, due to the presence of inductive and capacitive elements, these waveforms do not always align. The phase difference between them defines the power behavior of the circuit.

What Causes Phase Difference?

• Inductors (Coils): Inductive elements cause current to lag behind voltage. This is typical in motors, transformers, and chokes.
• Capacitors: Capacitive elements cause current to lead voltage, common in power factor correction applications.
• Resistive Loads: In pure resistive loads (e.g., heaters), current and voltage are perfectly in phase ($\varphi =0$).

The phase error introduced by CTs adds an additional phase shift, further distorting power calculations.

Phase Error and Energy Metering Accuracy

Why Energy Meters Need Accurate Phase Measurement

In energy metering, correct measurement of both current magnitude and phase angle is essential because:

• Power factor correction depends on precise phase angles to minimize penalties for industrial consumers.
• Utility companies rely on accurate power calculations to manage grid loads and prevent losses.
• Smart meters use phase information to optimize energy distribution and detect power theft.

How CT Phase Error Affects Energy Billing

A CT with phase error introduces a systematic deviation in power calculations, leading to long-term financial losses for both utilities and consumers. In extreme cases, billing inaccuracies may reach several percentage points, translating to millions of dollars in revenue discrepancies annually.

Phase Error Exists Only in AC Systems

Why DC Systems Do Not Have Phase Error

In direct current (DC) circuits, current and voltage remain constant over time. Since phase angle is only relevant in alternating signals, DC current transformers do not experience phase error.

• No Frequency Variation: DC has no sinusoidal frequency, so no phase shift occurs.
• Simpler Measurement: Unlike AC CTs, DC current sensors rely on shunt resistors or Hall-effect sensors, eliminating phase error concerns.

How to Minimize Phase Error in CTs

Design Improvements

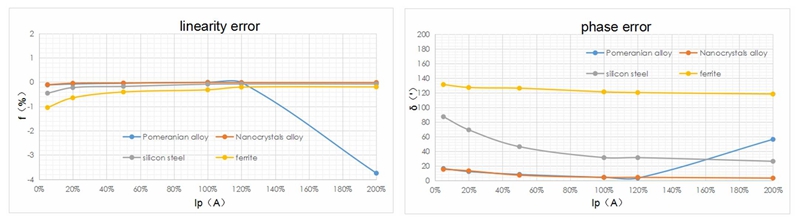

• High-quality magnetic cores reduce flux leakage and saturation effects.
• Optimized winding arrangements improve accuracy and reduce distortion.
• Advanced compensation techniques correct inherent phase shifts.

Calibration and Testing

• Periodic calibration ensures compliance with standards.
• Factory and field testing verify phase accuracy before deployment.
• Compensation algorithms in digital meters mitigate minor phase errors.
